XMOR® BHB mining bucket
XMOR® BHB bucket increases your productivity with a 10-20% higher payload without increasing suspended load. This is equal to a 15-30% reduction of steel in the bucket.
Get it now Download brochure

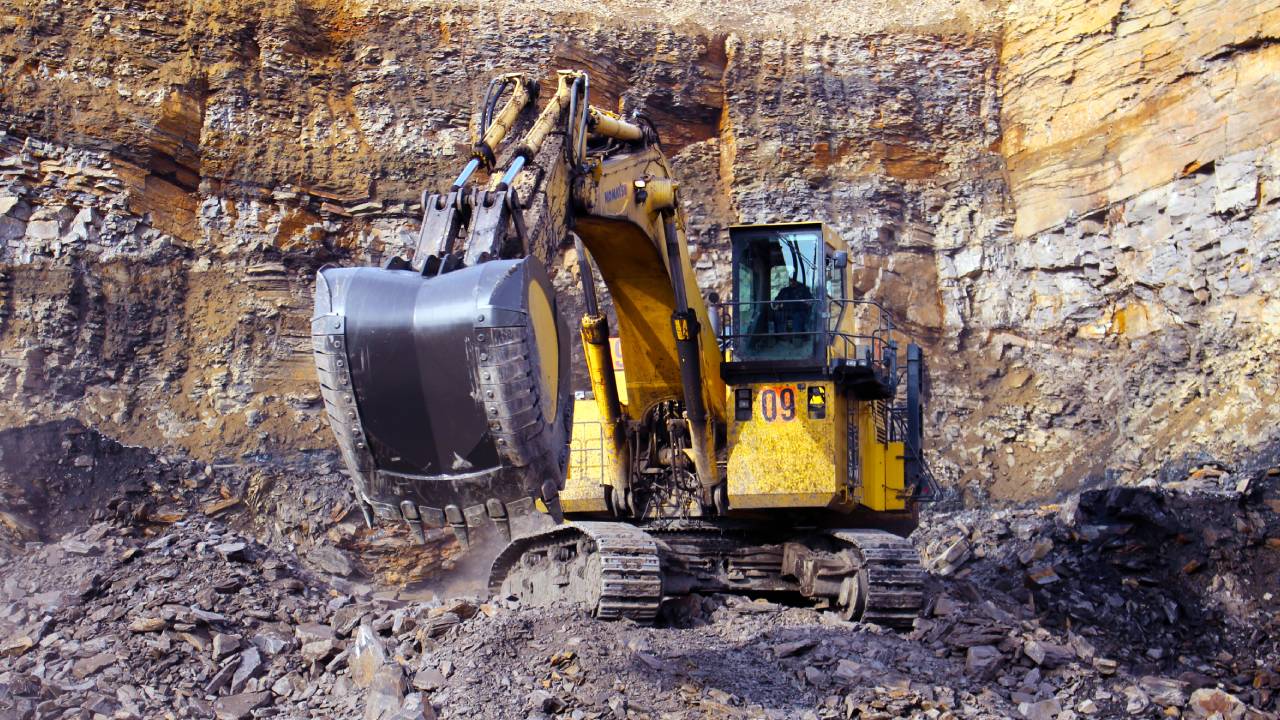

The BHB buckets are targeting large size excavators where increased productivity in digging adds value to the process. The low weight of the buckets enable increased payload of 10–20% without increasing excavator suspended load.
The XMOR® BHB-series comes with multiple patented- and design protected features

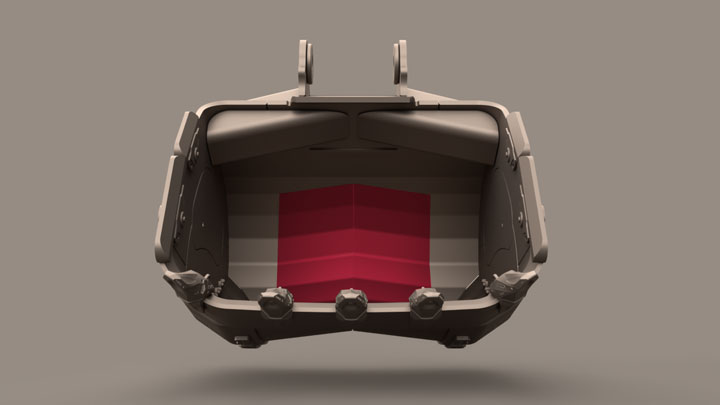

1) Inverted Keel
There are multiple advantages associated with this feature. Such as reduced resistance in operation, optimal material flow and distribution of stresses.

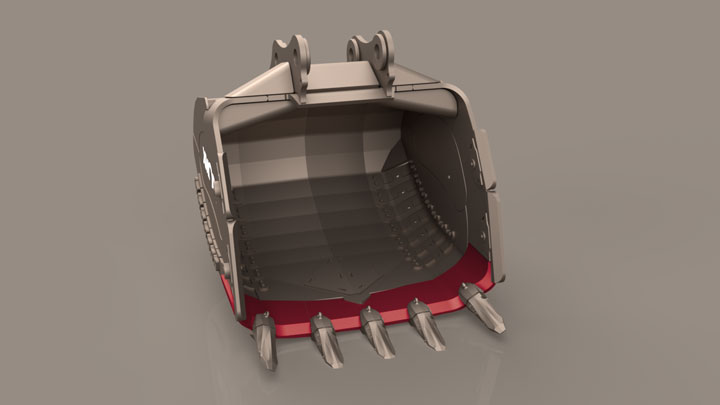

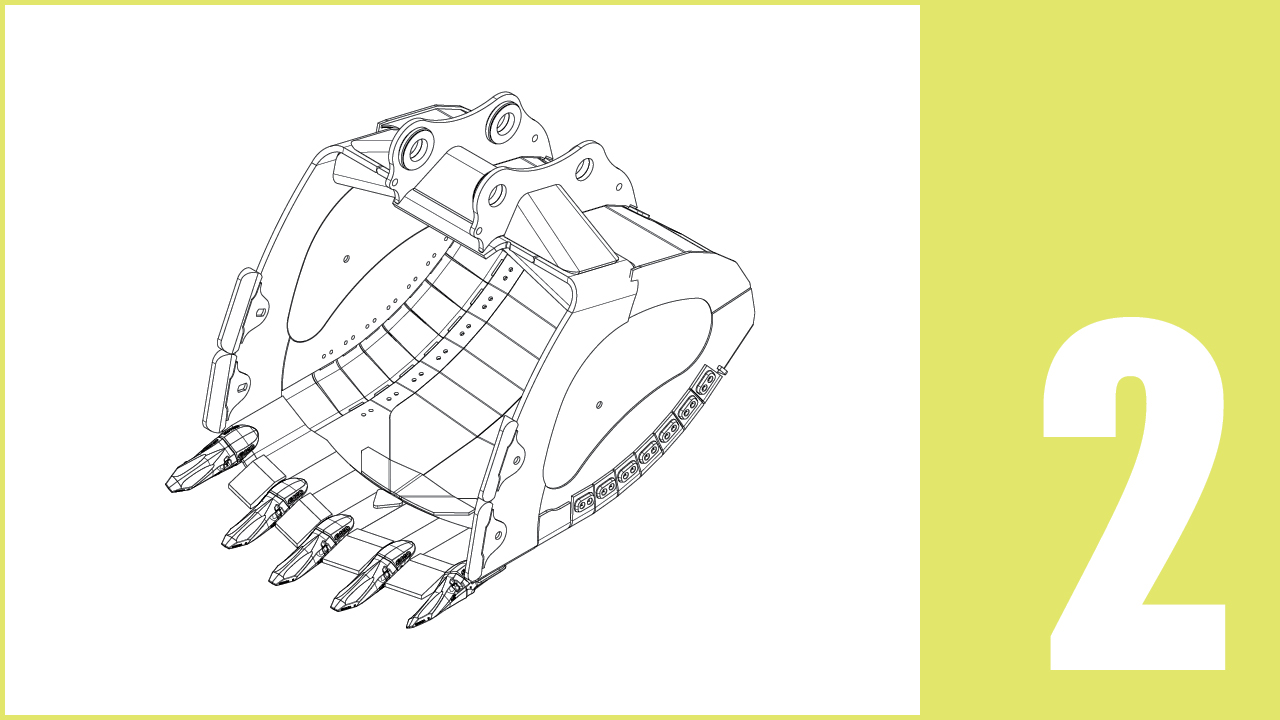

2) Curved Cutting Edge
The curved cutting edge moves the weld away from the area of highest stress, increasing structural integrity while accommodating natural flex to alleviate stress points. This also allows for a thinner cutting edge, so you cut into material easier.
3) Corner Cavity
The corner cavity reduces the weight by avoiding the traditional doubling of material. The cavity is covered by our Mechanical Heel Shroud.

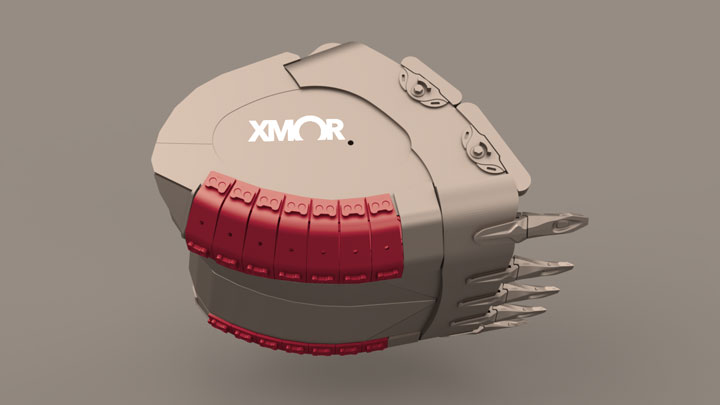

4) Mechanical Heel Shrouds
Being mechanically attached these reduce maintenance and downtime. Our Mechanical Heel Shroud covers the cavity.

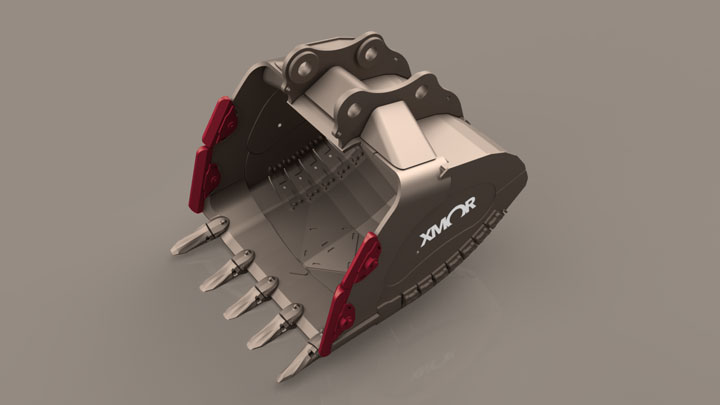

5) Mechanical Wing Shrouds
Attached with bolts, these Wing Shrouds are designed to fit the curved edge and protect the weld point of the cutting edge. They are reversible.

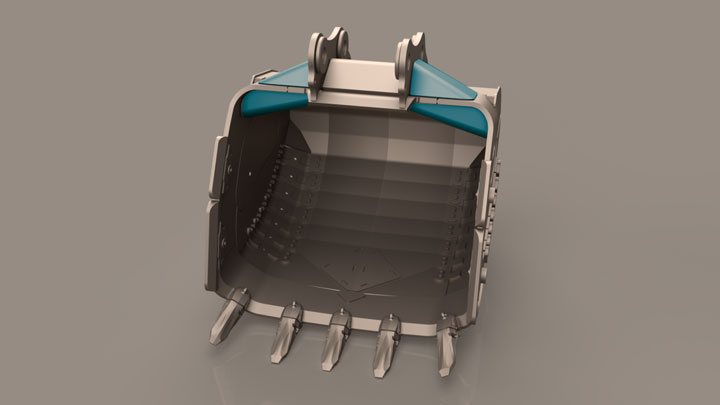

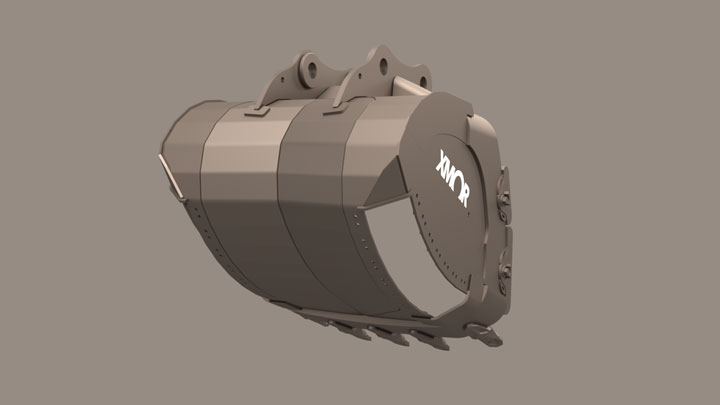

6) Angular Head Beam
This provides structural support while still reducing the amount of steel used, which in turn reduces weight. The lack of a single horizontal channel allows optimal material flow, opening the mouth wider to accept material easier.
7) Keel Saddle
In more abrasive operations a little more protection is often required for the leading point of the Inverted Keel.

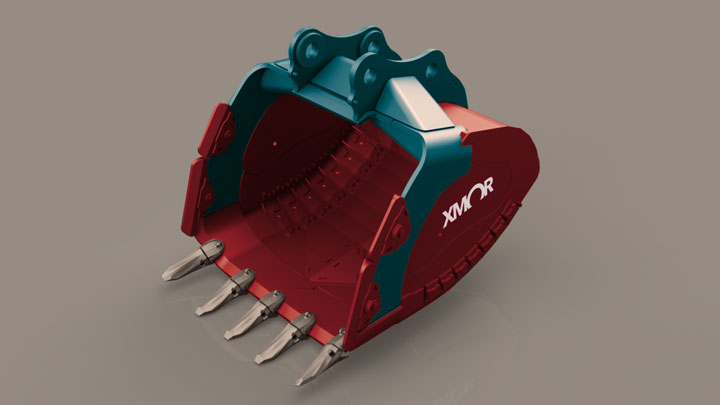

SSAB Products
All of this made possible by taking optimal advantage of the qualities of Hardox® wear plate and Strenx® performance steel from SSAB.

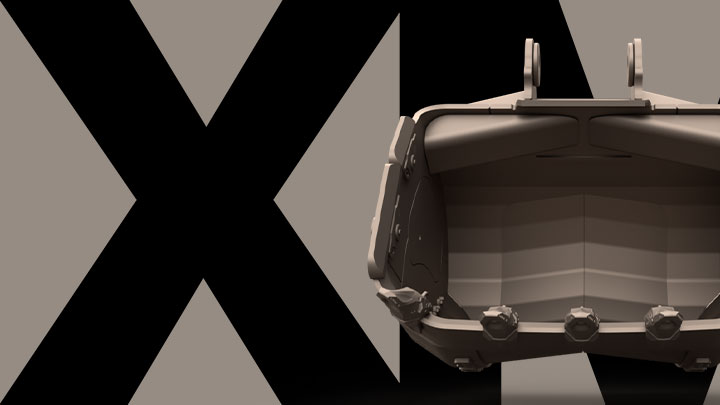

Find your bucket
XMOR® BHB series.
Flexible for all environments
- Non-abrasive rock
- Abrasive rock
- Bulk earthworks
- Abrasive sand/gravel
The XMOR® BHB series is suitable for densities up to 3030 pounds per cubic yard (1800 kg per cubic meter). Works in coal, sand and gravel, shot rock up to 20 inches (0.5 m) and other loose material applications. Not suitable for pushing large boulders, pulling toes/footings left from the blast and smashing rocks. Not intended for use with a coupler (Quick Hitch).

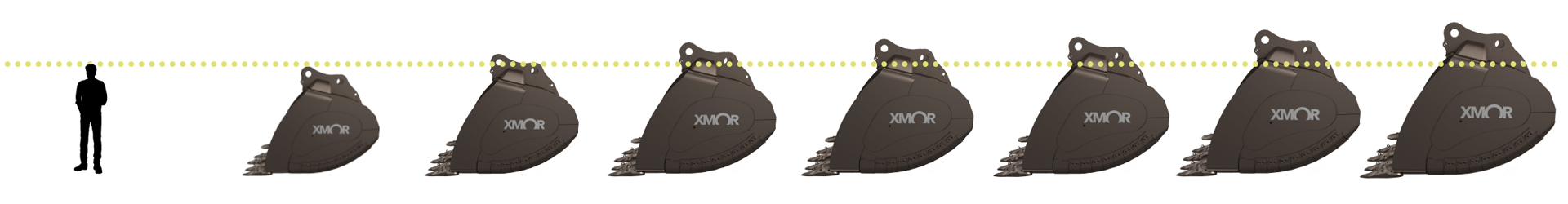

Size matters
Hide/Show specific columns Edit
Select columns to display
| Profile | BHB 50 | BHB 60 | BHB 70 | BHB 80 | BHB 90 | BHB 100 | BHB 120 | |
|---|---|---|---|---|---|---|---|---|
| Suspended load | lbs. | 14000-17000 | 17000-20000 | 20000-23500 | 23500-29500 | 29500-33600 | 33600-38200 | 38500-44500 |
| kg | 6350-7600 | 7600-9000 | 9000-10500 | 10500-13400 | 13500-15250 | 15250-17400 | 17400-20200 | |
| Density | lbs./CuYd | 2530-3030 | 2530-3030 | 2530-3030 | 2530-3030 | 2530-3030 | 2530-3030 | 2530-3030 |
| kg/m3 | 1500-1800 | 1500-1800 | 1500-1800 | 1500-1800 | 1500-1800 | 1500-1800 | 1500-1800 | |
| Volume | CuYd | 2.60 to 4.30 | 4.10 to 5.30 | 5.00 to 6.30 | 6.20 to 7.70 | 7.20 to 8.90 | 8.30 to 10.10 | 9.90 to 12.00 |
| m3 | 2.53 to 3.28 | 3.15 to 4.07 | 3.79 to 4.80 | 4.72 to 5.91 | 5.51 to 6.83 | 6.32 to 7.75 | 7.56 to 9.20 | |
| Payload | lbs. | 6578-13029 | 10373-16059 | 12650-19089 | 15686-23331 | 18216-26967 | 20999-30603 | 25047-36360 |
| kg | 3789-5903 | 4728-7319 | 5691-8648 | 7085-10638 | 8271-12291 | 9476-13942 | 11346-16556 | |
| Bucket weight | lbs. | 3689-4232 | 4440-5067 | 6037-6837 | 7280-8162 | 7984-8917 | 9162-10232 | 10094-11236 |
| kg | 1673-1919 | 2014-2298 | 2739-3087 | 3302-3702 | 3621-4045 | 4156-4641 | 4579-5097 | |
| Bucket width | Inch | 61-77 | 63-79 | 69-85 | 73-89 | 77-93 | 81-97 | 85-101 |
| mm | 1549-1956 | 1600-2007 | 1753-2159 | 1854-2261 | 1956-2362 | 2057-2464 | 2159-2565 | |
| Tip to pin | Inch | 76 | 82 | 89 | 94 | 101 | 105 | 111 |
| mm | 1925 | 2100 | 2255 | 2390 | 2555 | 2660 | 2800 |
Compare parameters
Select one parameter to compare
Comparison
Profile
Suspended load
lbs.
BHB 50
14000-17000
BHB 60
17000-20000
BHB 70
20000-23500
BHB 80
23500-29500
BHB 90
29500-33600
BHB 100
33600-38200
BHB 120
38500-44500
Expand
Collapse
Profile
kg
BHB 50
6350-7600
BHB 60
7600-9000
BHB 70
9000-10500
BHB 80
10500-13400
BHB 90
13500-15250
BHB 100
15250-17400
BHB 120
17400-20200
Expand
Collapse
Profile
Density
lbs./CuYd
BHB 50
2530-3030
BHB 60
2530-3030
BHB 70
2530-3030
BHB 80
2530-3030
BHB 90
2530-3030
BHB 100
2530-3030
BHB 120
2530-3030
Expand
Collapse
Profile
kg/m3
BHB 50
1500-1800
BHB 60
1500-1800
BHB 70
1500-1800
BHB 80
1500-1800
BHB 90
1500-1800
BHB 100
1500-1800
BHB 120
1500-1800
Expand
Collapse
Profile
Volume
CuYd
BHB 50
2.60 to 4.30
BHB 60
4.10 to 5.30
BHB 70
5.00 to 6.30
BHB 80
6.20 to 7.70
BHB 90
7.20 to 8.90
BHB 100
8.30 to 10.10
BHB 120
9.90 to 12.00
Expand
Collapse
Profile
m3
BHB 50
2.53 to 3.28
BHB 60
3.15 to 4.07
BHB 70
3.79 to 4.80
BHB 80
4.72 to 5.91
BHB 90
5.51 to 6.83
BHB 100
6.32 to 7.75
BHB 120
7.56 to 9.20
Expand
Collapse
Profile
Payload
lbs.
BHB 50
6578-13029
BHB 60
10373-16059
BHB 70
12650-19089
BHB 80
15686-23331
BHB 90
18216-26967
BHB 100
20999-30603
BHB 120
25047-36360
Expand
Collapse
Profile
kg
BHB 50
3789-5903
BHB 60
4728-7319
BHB 70
5691-8648
BHB 80
7085-10638
BHB 90
8271-12291
BHB 100
9476-13942
BHB 120
11346-16556
Expand
Collapse
Profile
Bucket weight
lbs.
BHB 50
3689-4232
BHB 60
4440-5067
BHB 70
6037-6837
BHB 80
7280-8162
BHB 90
7984-8917
BHB 100
9162-10232
BHB 120
10094-11236
Expand
Collapse
Profile
kg
BHB 50
1673-1919
BHB 60
2014-2298
BHB 70
2739-3087
BHB 80
3302-3702
BHB 90
3621-4045
BHB 100
4156-4641
BHB 120
4579-5097
Expand
Collapse
Profile
Bucket width
Inch
BHB 50
61-77
BHB 60
63-79
BHB 70
69-85
BHB 80
73-89
BHB 90
77-93
BHB 100
81-97
BHB 120
85-101
Expand
Collapse
Profile
mm
BHB 50
1549-1956
BHB 60
1600-2007
BHB 70
1753-2159
BHB 80
1854-2261
BHB 90
1956-2362
BHB 100
2057-2464
BHB 120
2159-2565
Expand
Collapse
Profile
Tip to pin
Inch
BHB 50
76
BHB 60
82
BHB 70
89
BHB 80
94
BHB 90
101
BHB 100
105
BHB 120
111
Expand
Collapse
Profile
mm
BHB 50
1925
BHB 60
2100
BHB 70
2255
BHB 80
2390
BHB 90
2555
BHB 100
2660
BHB 120
2800
Expand
Collapse
Each model size targets 3 different material densities of either up to 2530, 2780 and 3030 lbs/CuYd.
The buckets target a variety of applications within quarry industry as bulk earthworks, sand, gravel, coal stripping and blasted rock up to 20”
