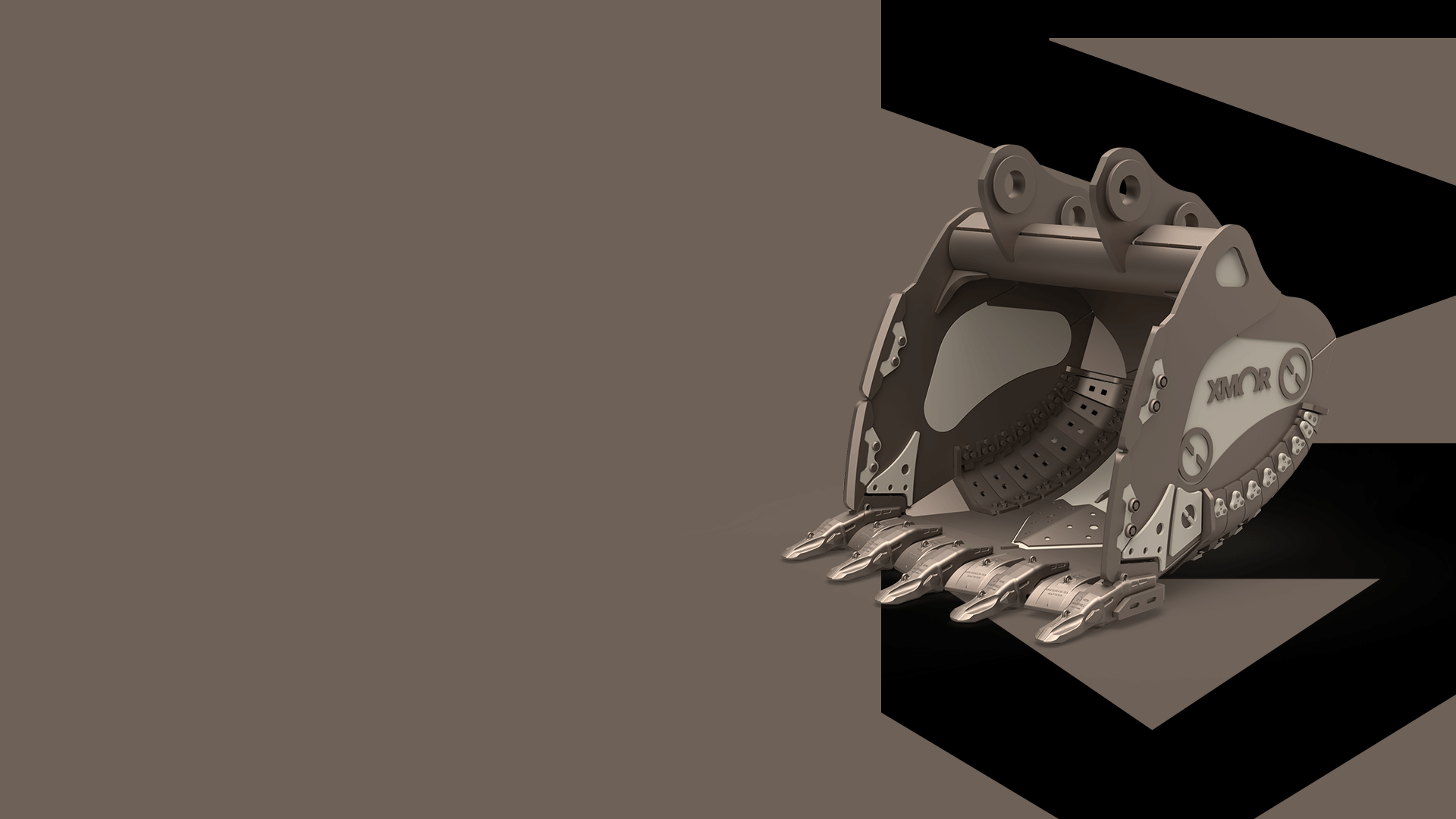

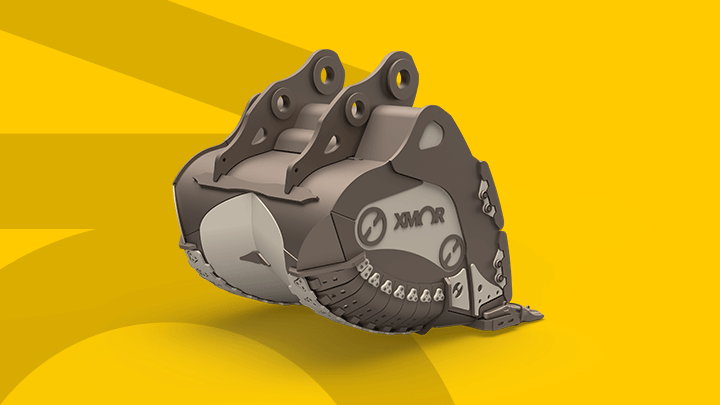

XMOR® BHC mining bucket – in a class of its own

Built to give up to 15% higher payload capacity compared to a conventional bucket. This bucket targets large-size excavators between 80 and 300 tonnes where increased productivity in digging adds value to the process.
FIND A SUPPLIERCONTACT USDOWNLOAD BROCHURE
Available in: USA, Canada, Australia, South Africa, Mexico and Europe.
SIZE

XMOR® BHC buckets are designed for 80-300 tonne machines.


MATERIAL

Made to tackle abrasive conditions with small to medium rocks.


CERTIFICATIONS

All buckets carry a Hardox® In My Body certification.


High productivity buckets for tough mining conditions

XMOR® BHC buckets have the necessary strength for tearing out blast footings, loading trucks and crushers with blasted rock and other heavy-duty operations such as bulk earthworks and coal stripping. The reduced weight of the bucket allows for more payload without increasing suspended load.


Performance

XMOR® BHC buckets are designed for high productivity when working with rock, over burden material, sand and gravel, coal, clay and bulk earth works.


Lower weight

The increased loading capacity of XMOR® BHC buckets is the result of reduced weight, which in turn is the result of optimizing every part for durability.


Increased uptime

XMOR® BHC buckets use bolted heel segments instead of welded which means heel segment replacements can be performed in hours instead of days. Welding the heel segments on is also an option for harsher conditions.


Productivity in every detail

The XMOR® BHC buckets are designed from the ground up for high productivity and long service life. They come with a number of innovative features that have approved and pending patents and design patents.

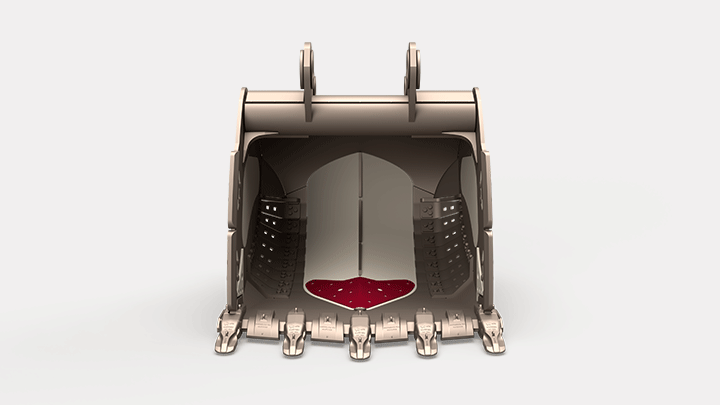

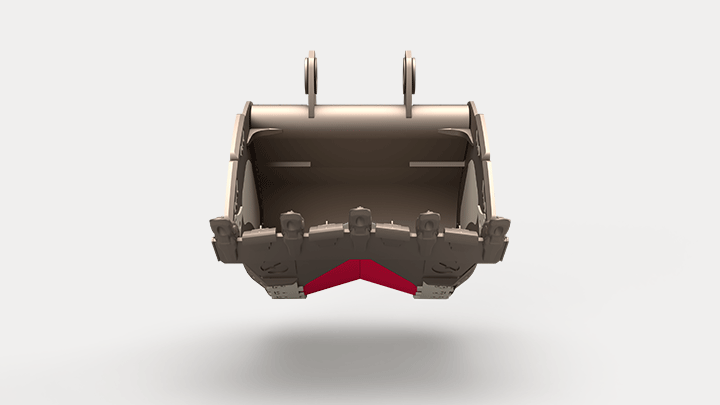

Inverted Keel

A proven and unique XMOR® feature serving the dual purpose of distributing the material smoothly inside the bucket and keeping the external plate away from the material, thus reducing wear.

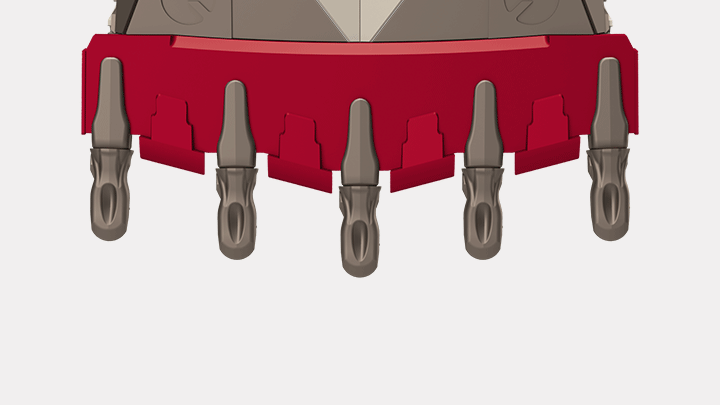

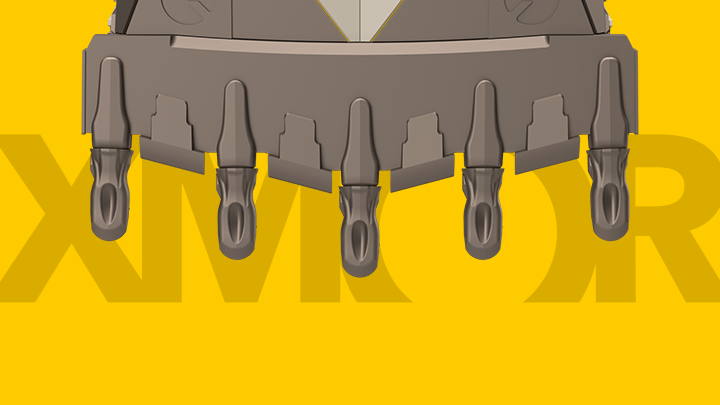

Flat Cutting Edge

The flat Cutting Edge accommodates various GET options for protection against rock and wear.


Cavity Corner

The Cavity Corner reduces the weight by avoiding the traditional doubling of material. The cavity is covered by our Mechanical Heel Shrouds.

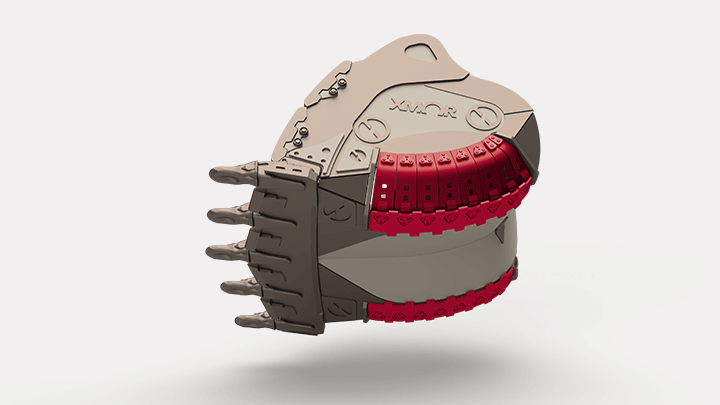

Mechanical Heel Shrouds

Being mechanically attached these reduce maintenance and downtime. Our Mechanical Heel Shrouds cover the Cavity Corner.

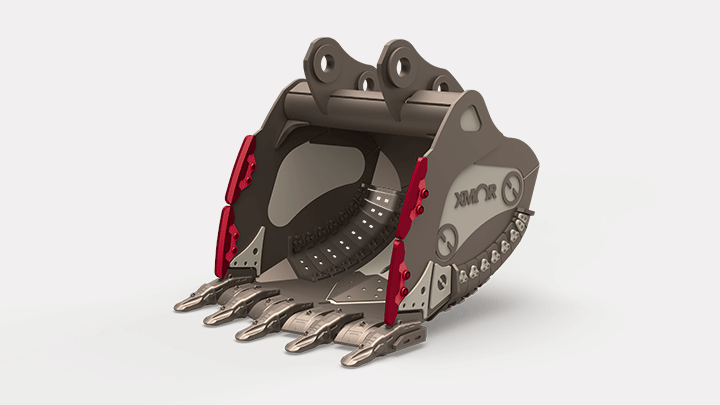

Mechanical Wing Shroud

Attached with bolts, these Mechanical Wing Shrouds are designed to fit the curved edge and protect the weld point of the cutting edge. They are reversible.

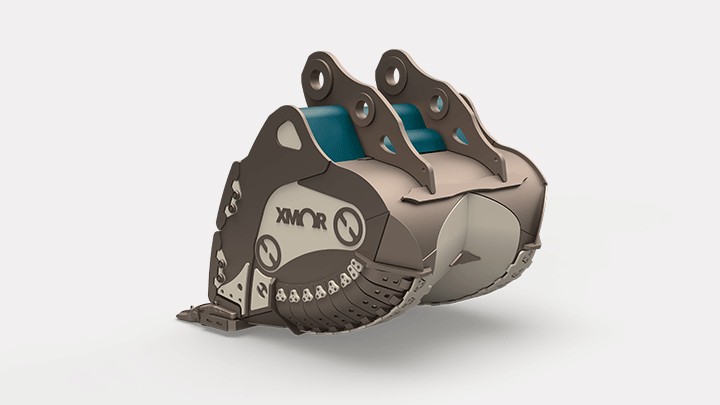

Head Beam

The teardrop-shaped Head Beam provides structural integrity and allows the main bucket to be built separately.

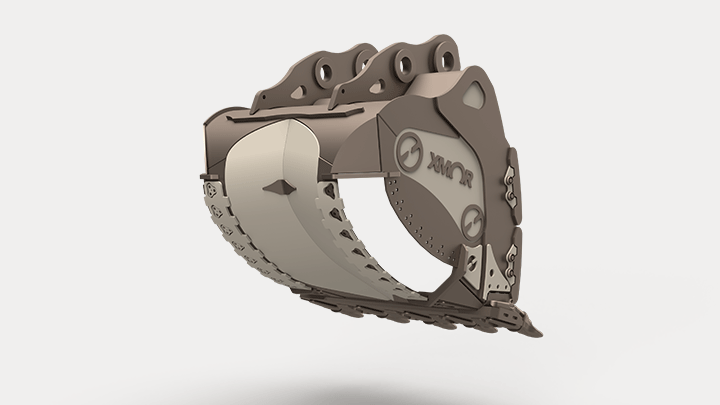

Keel Saddle

Keel Saddle is an optional liner plate which adds protection to the front of the Inverted Keel.

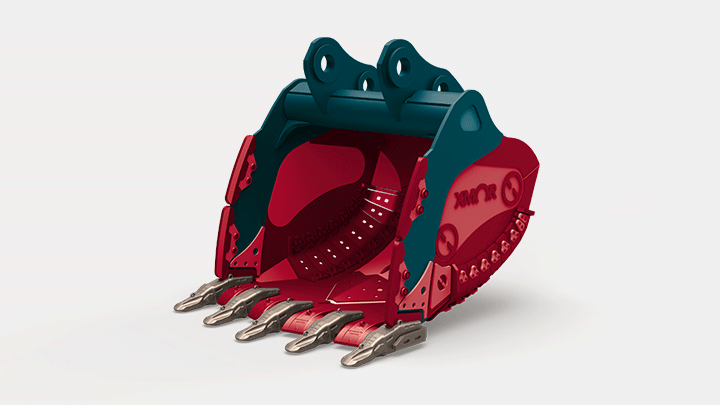

SSAB products

All of this made possible by taking optimal advantage of the qualities of Hardox® wear plate and Strenx® performance steel from SSAB.


Explore the XMOR® BHC bucket brochure

Find your XMOR® bucket

Our bucket selector can help you to discover the ideal XMOR® BHC Bucket for your operation. Simply provide some details about your bucket and machine, and we will present a bucket capable of managing larger loads with reduced weight.


BUCKET SELECTOR

Stay productive with XMOR® service and rebuild kits

Renew your XMOR® BHC Bucket with our service and rebuild kits. The components in these kits are made to seamlessly match each unique bucket. All parts use the same hard and tough Hardox® wear plate as the original parts.


FIND YOUR KIT

XMOR® BHC buckets for 80-300 tonne machines

Material density 2520 lbs/CuYd

Profile
Profile
Suspended load (lbs)
BHC 80
29035
BHC 90
35737
BHC 100
40786
BHC 120
45129
BHC 150
51103
BHC 200
76059
BHC 250
94799
BHC 300
110363
Profile
Profile
Volume (CuYd)
BHC 80
8,08
BHC 90
9,94
BHC 100
11,01
BHC 120
12,07
BHC 150
13,16
BHC 200
20,57
BHC 250
25,80
BHC 300
30,11
Profile
Profile
Bucket weight (lbs)
BHC 80
8598
BHC 90
10397
BHC 100
12824
BHC 120
14593
BHC 150
17835
BHC 200
24030
BHC 250
29542
BHC 300
34216
Profile
Profile
Bucket width (inches)
BHC 80
85
BHC 90
95
BHC 100
100
BHC 120
108
BHC 150
112
BHC 200
118
BHC 250
132
BHC 300
140
Profile
Profile
Excavator size (lbs)
BHC 80
160000–180000
BHC 90
180000–200000
BHC 100
200000–260000
BHC 120
240000–300000
BHC 150
300000–360000
BHC 200
360000–460000
BHC 250
46000–560000
BHC 300
560000–680000

Material density 3030 lbs/CuYd

Profile

Suspended load (lbs)

BHC 80
29035
BHC 90
35737
BHC 100
40786
BHC 120
45159
BHC 150
511103
BHC 200
76059
BHC 250
94799
BHC 300
110363
Profile

Volume (CuYd)

BHC 80
6,74
BHC 90
8,36
BHC 100
928
BHC 120
10,10
BHC 150
11,54
BHC 200
17,21
BHC 250
21,58
BHC 300
25,18
Profile

Bucket weight (lbs)

BHC 80
8201
BHC 90
9903
BHC 100
12214
BHC 120
13898
BHC 150
16063
BHC 200
22884
BHC 250
28131
BHC 300
32584
Profile

Bucket width (inches)

BHC 80
81
BHC 90
91
BHC 100
97
BHC 120
104
BHC 150
108
BHC 200
114
BHC 250
129
BHC 300
136
Profile

Excavator size (lbs)

BHC 80
160000–180000
BHC 90
180000–200000
BHC 100
200000–260000
BHC 120
240000–300000
BHC 150
300000–360000
BHC 200
360000–460000
BHC 250
460000–560000
BHC 300
560000–680000
